Angle beam

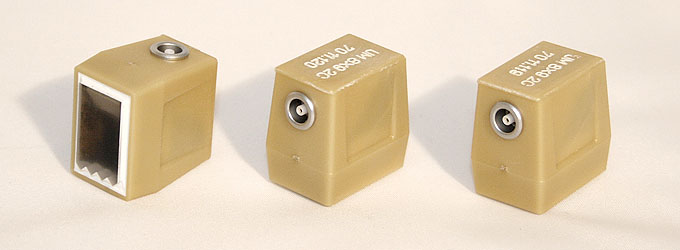

Angle Beam Transducers are single element transducers used with wedge for flaw detection and sizing, especially of welds.
Standard Angle Beam Transducer
| Designation | Angle | Dimensions (mm) | Connector | Frequency |
|---|---|---|---|---|
| UM 9x8-2C-35 | 35° | 8x9 | Lemo 00 | 2 MHz |
| UM 9x8-2C-45 | 45° | 8x9 | Lemo 00 | 2 MHz |
| UM 9x8-2C-60 | 60° | 8x9 | Lemo 00 | 2 MHz |
| UM 9x8-2C-70 | 70° | 8x9 | Lemo 00 | 2 MHz |
| UM 9x8-2C-80 | 80° | 8x9 | Lemo 00 | 2 MHz |
| UM 9x8-4C-35 | 35° | 8x9 | Lemo 00 | 4 MHz |
| UM 9x8-4C-45 | 45° | 8x9 | Lemo 00 | 4 MHz |
| UM 9x8-4C-60 | 60° | 8x9 | Lemo 00 | 4 MHz |
| UM 9x8-4C-70 | 70° | 8x9 | Lemo 00 | 4 MHz |
| UM 9x8-4C-80 | 80° | 8x9 | Lemo 00 | 4 MHz |
Large Angle Beam Transducer
| Designation | Angle | Dimensions (mm) | Connector | Frequency |
|---|---|---|---|---|
| UN 20x22-2C-35 | 35° | 20x22 | Lemo 00 | 2 MHz |
| UN 20x22-2C-45 | 45° | 20x22 | Lemo 00 | 2 MHz |
| UN 20x22-2C-60 | 60° | 20x22 | Lemo 00 | 2 MHz |
| UN 20x22-2C-70 | 70° | 20x22 | Lemo 00 | 2 MHz |
| UN 20x22-2C-80 | 80° | 20x22 | Lemo 00 | 2 MHz |
| UN 20x22-4C-35 | 35° | 20x22 | Lemo 00 | 4 MHz |
| UN 20x22-4C-45 | 45° | 20x22 | Lemo 00 | 4 MHz |
| UN 20x22-4C-60 | 60° | 20x22 | Lemo 00 | 4 MHz |
| UN 20x22-4C-70 | 70° | 20x22 | Lemo 00 | 4 MHz |
| UN 20x22-4C-80 | 80° | 20x22 | Lemo 00 | 4 MHz |
